E Series - Q. What are the dimensions of the Goldring E Series cartridges?

Answer:

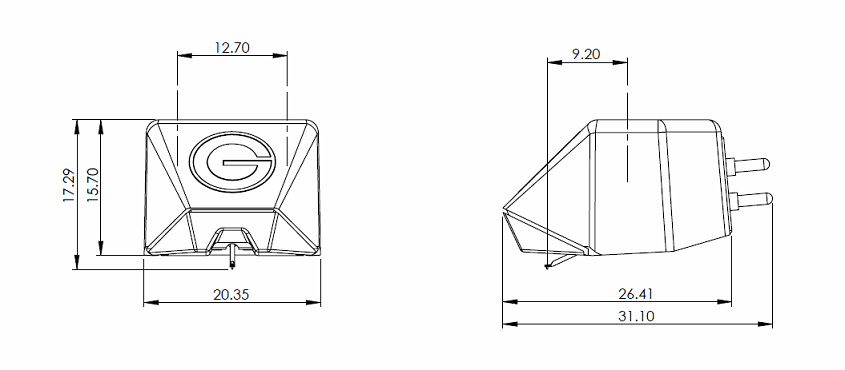

Please see below the diagram showing the critical dimensions, the cartridge uses standard mounting pitch of 0.5"
